PROFI LINE

SOMETIMES, THE SHAPE AND THE FACTS SPEAK FOR THEMSELVES…
THIS ALSO APPLIES TO THE PERFORMANCE OF THE NEW RAINBOW PROFI LINE.
TECHNOLOGICAL PROGRESS CULMINATES IN A NEW DESIGN AND
HIGHLIGHTS SOUND.

  • Stainless steel housing for very low distortion, CNC crafted and polished by hand
  • Multi part housing with special acoustic details to optimize frequency response
  • Closed volume for optimized behavior and low resonance frequency
  • Silk dome, coated by hand
  • High energy neodymium magnet
  • Vented magnet system to connect tweeter to the accoustic volume
  • Audio viscous damping with Merino Wool and other special acoustic materials
  • Ferrofluid free for fast and precise pulse response
  • Speaker screw terminal for 4mm² speaker cables

PROFI LINE

Experience Music In A New Way, Visually Acoustically, Dynamically

 PL-T28PL-W6CPL-W6PPL-M3P

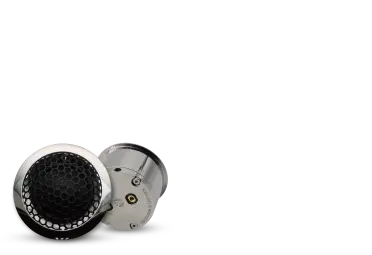

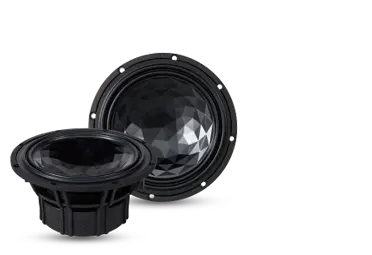

 28mm Silk Dome Tweeter165mm Crystal Cone

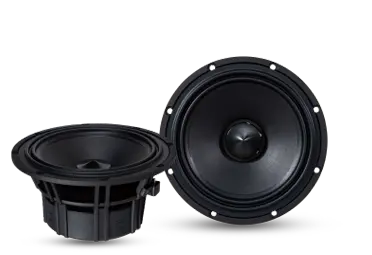

Mid Woofer		165mm Mid Woofer with

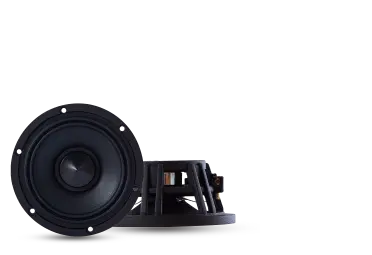

Phase Plug		80mm Midrange with
Phase Plug
Impedance4 Ohm4 Ohm4 Ohm4 Ohm
Handling Power40 W180 W180 W80 W
Resonance Frequency650Hz36Hz38Hz85Hz
Frequency Response2kHz – 30kHz33Hz – 5kHz35Hz – 5kHz250Hz – 8kHz
Sensitivity92 dB/W/m87 dB/W/m88 dB/W/m88 dB/W/m
Mounting Diameter52mm143mm143mm78mm
Mounting Depth36mm78mm78mm35mm
Weight330g1200g1200g300g
Part-Nr.231651231657231656231653
