EXPERIENCE LINE
DSP : EXPERIENCE LINE
 |
 |
|
| EL-AP300D (NEO) | EL-PA200 (NEO) | |
|---|---|---|
| 8 Channel DSP with 4 Channel Amplifier Supports DRC NEO | 6 Channel DSP with 4 Channel Amplifier Supports DRC NEO | |
| Input Signal | 4-channel high level, 2-channel low level, built-in Bluetooth, USB, optical fiber | 4-channel high level, built-in Bluetooth, USB |
| Output Signal | 8-channel low level, 4 × 70 W | 6-channel low level, 4 × 50 W |
| Input Range (max) | 6Vpp (RCA), 26Vpp (high level) | 26Vpp (high level) |
| Low Level Output Impedance | 51 Ohm | 51 Ohm |
| Frequency Response | 20Hz – 20kHz | 20Hz – 20kHz |
| Signal to Noise Ratio | ≥90dB | ≥90dB |
| Total Harmonic Distortion | ≤0.05% | ≤0.05% |
| Dimensions(L×W×H) | 178mm × 150mm × 40mm | 178mm × 117mm × 40mm |
| Part.-Nr | 280072 | 280070 |
| Know more | Know more |
 |  | |

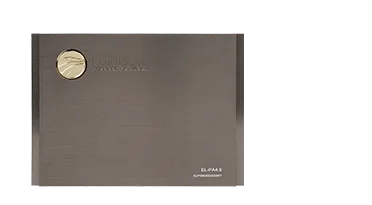

| EL-PA4.6 | EL-PA6.8 | |
|---|---|---|
| 6ch sound processor a amplifier Supports DRC Mini/DRC Control Pro | 8ch sound processor amplifier Supports DRC Control Pro | |
| Peak Power: | 4chx 50W | 6chx 150W |
| Frequency Response: | 20Hz -20kHz | 20Hz – 20kHz |
| Dynamic Range: | ≥102dB | ≥102dB |
| Signal to Noise Ratio: | ≥98dB | ≥98dB |
| THD | ≤0.03% | ≤0.03% |
| Dimensions (L×W×H) | 177x126x42mm | 318x50x50mm |
| Part.-Nr | 280192 | 280193 |
| Know more | Know more |
 |
 |
|

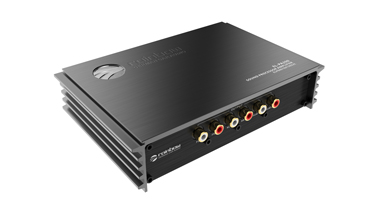

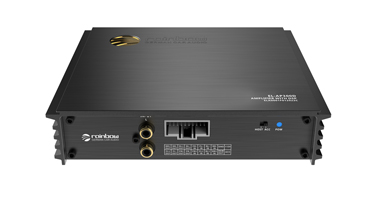

| EL-AP300D | EL-PA200 | |
|---|---|---|
| Amplifier with 6-channel DSP | 6 Channel Sound Processor Amplifier | |
| Input Signal | 4-channels high level, 2-channels low level | 4-channels high level, built-in Bluetooth |
| Output Signal | 6-channels low level, power: 4×70W | 6-channels low level, power: 4x50W |
| Input Range (max) | 26Vpp (high level) | 26Vpp (high level) |
| Low Level Output Impedance | 51 Ohm | 51 Ohm |
| Frequency Response | 20Hz – 20kHz | 20Hz – 20kHz |
| Signal to Noise Ratio | ≥98dB | ≥90dB |
| Total Harmonic Distortion | ≤0.05% | ≤0.05% |
| Dimensions(L×W×H) | 178mm x 150mm x 40mm | 178mm × 117mm × 40mm |
| Part.-Nr | 280072 | 280070 |
| Know more | Know more |
