EXPERIENCE LINE

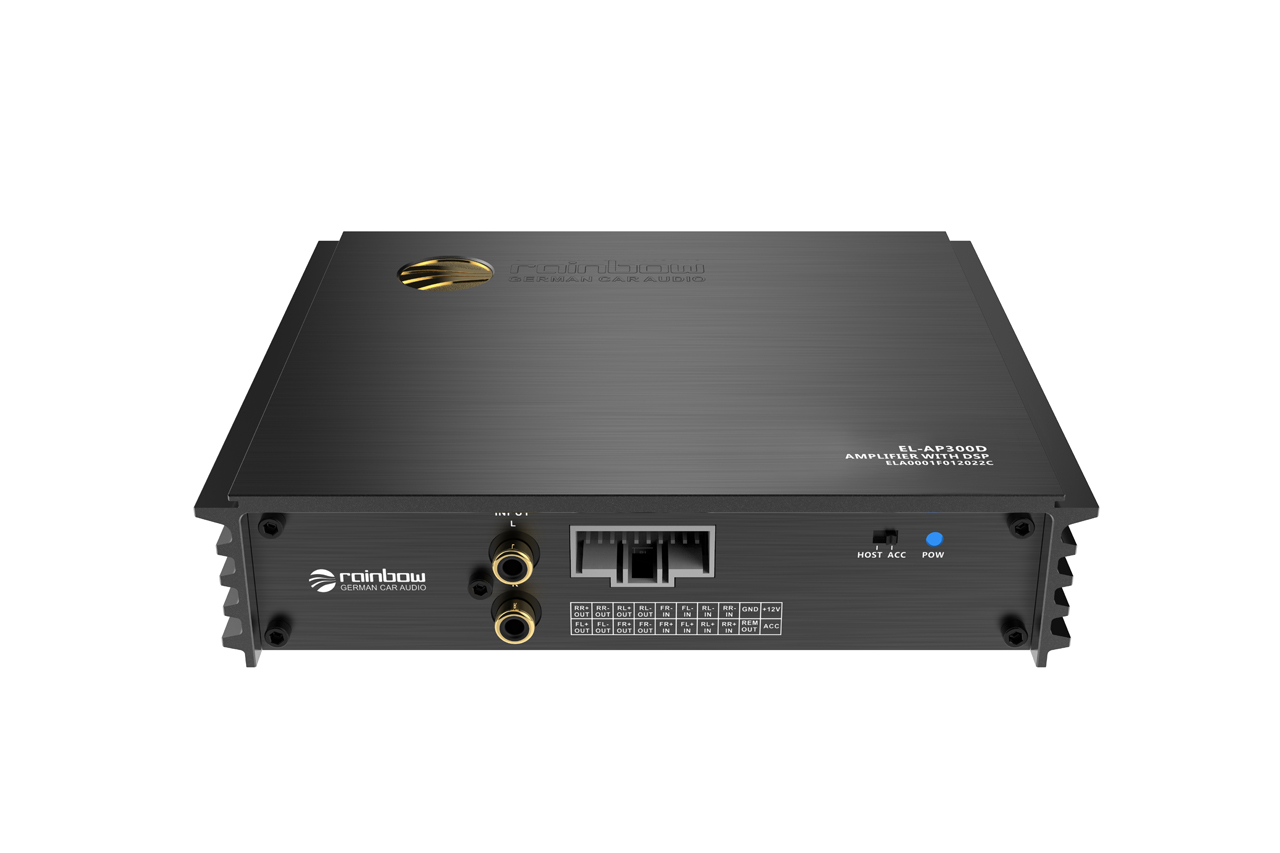

	EL-AP300D Amplifier with 6-channel DSP
Input Signal	4-channels high level, 2-channels low level
Output Signal	6-channels low level, power: 4×70W
Input Range (max)	26Vpp (high level)
Low Level Output Impedance	51 Ohm
Frequency Response	20Hz – 20kHz
Signal to Noise Ratio	≥98dB
Total Harmonic Distortion	≤0.05%
Dimensions(L×W×H)	178mm x 150mm x 40mm
Part.-Nr	280072
