Step:01

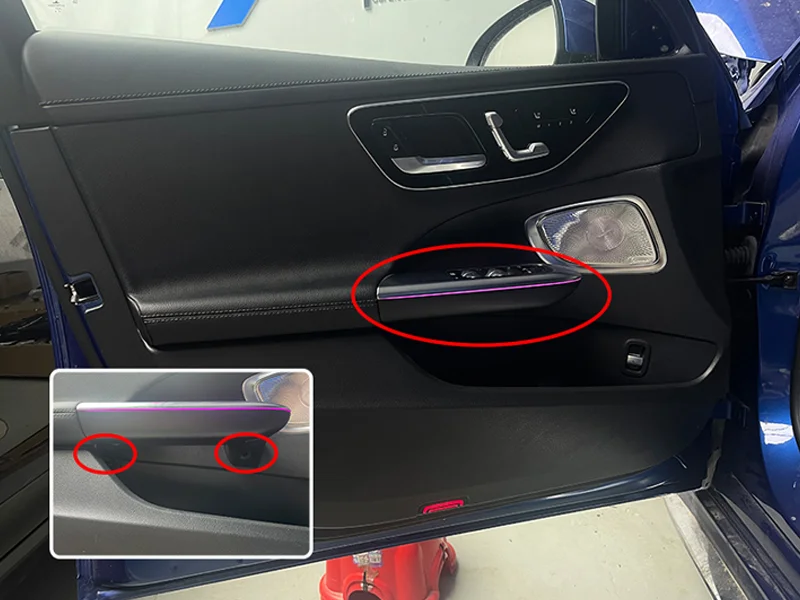

Unscrew the screws and remove the door panel
Step:02

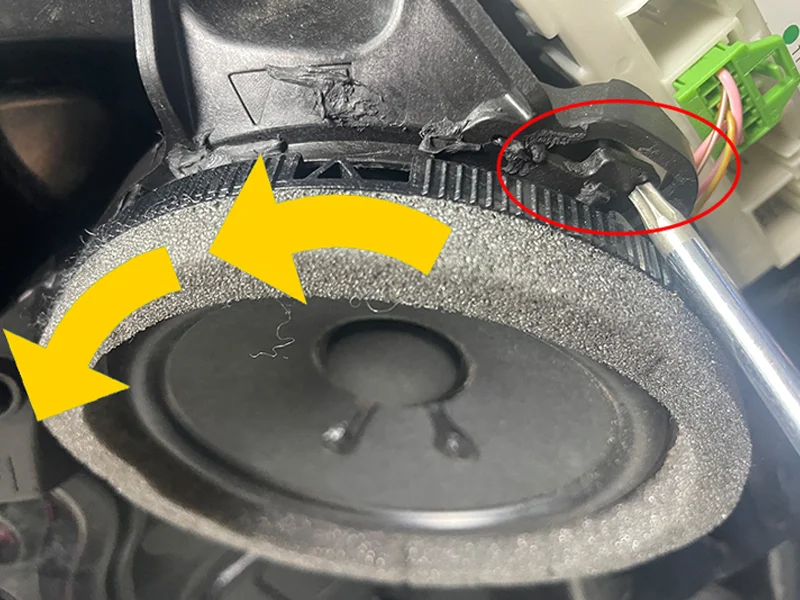

Use a screwdriver, apply pressure to the fastener and rotate counterclockwise to remove the speaker
Step:03

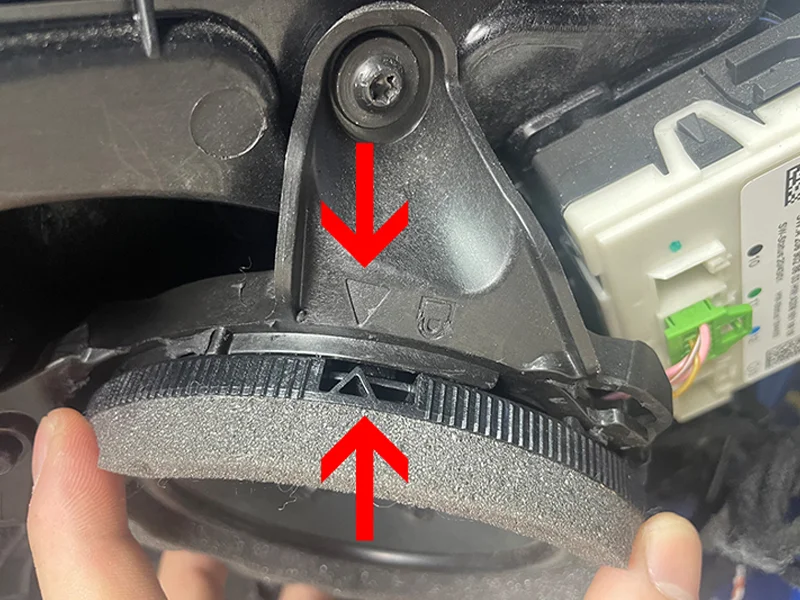

Align the two arrow icons and rotate it clockwise to install
Step:04

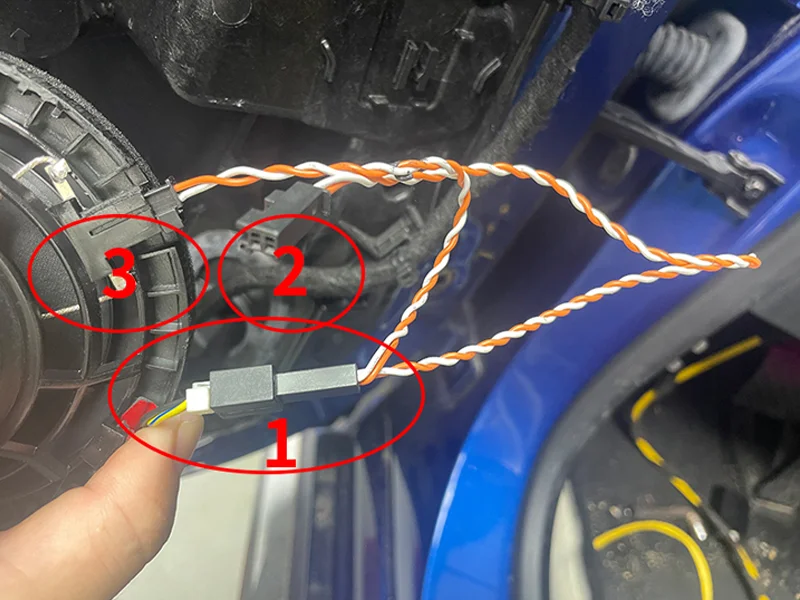

Connect red-circle-one to the original speaker wire, red-circle-two to tweeter, red-circle-three to midrange speaker
Step:05

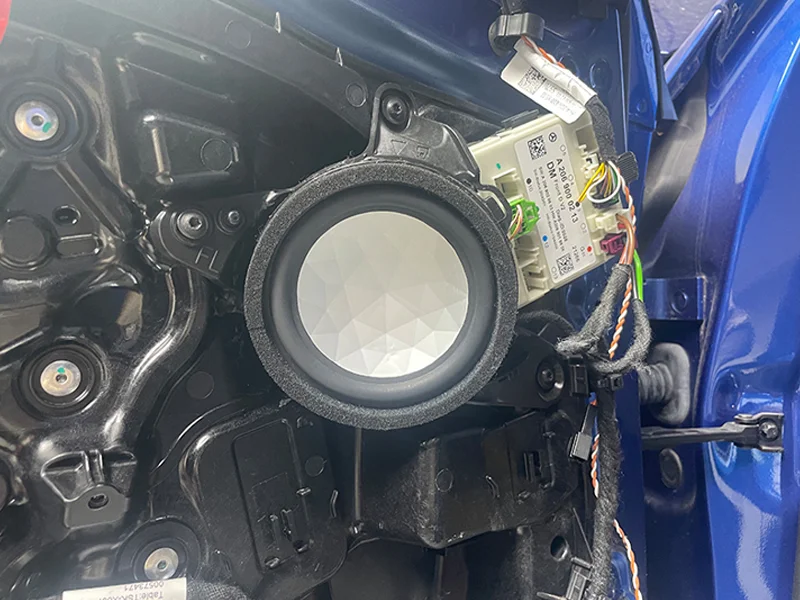

After-installation display
Step:06

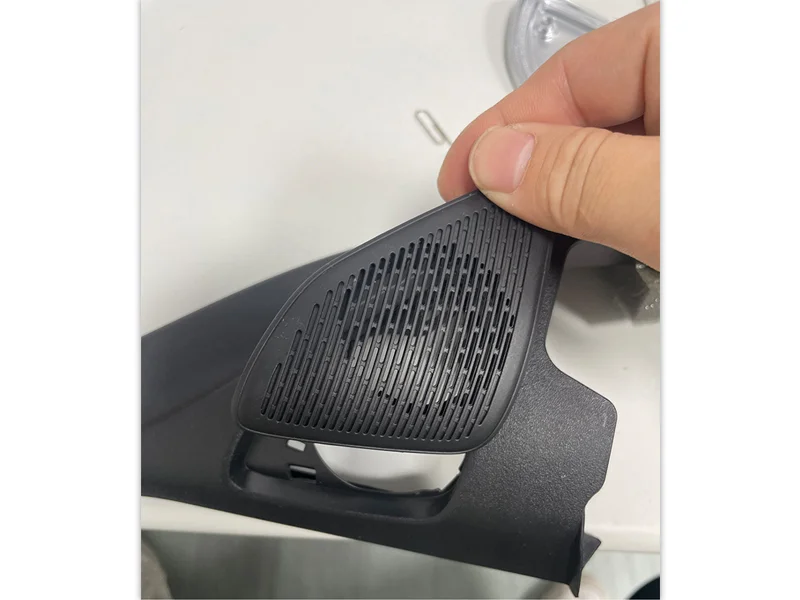

Remove the original tweeter grille
Step:07

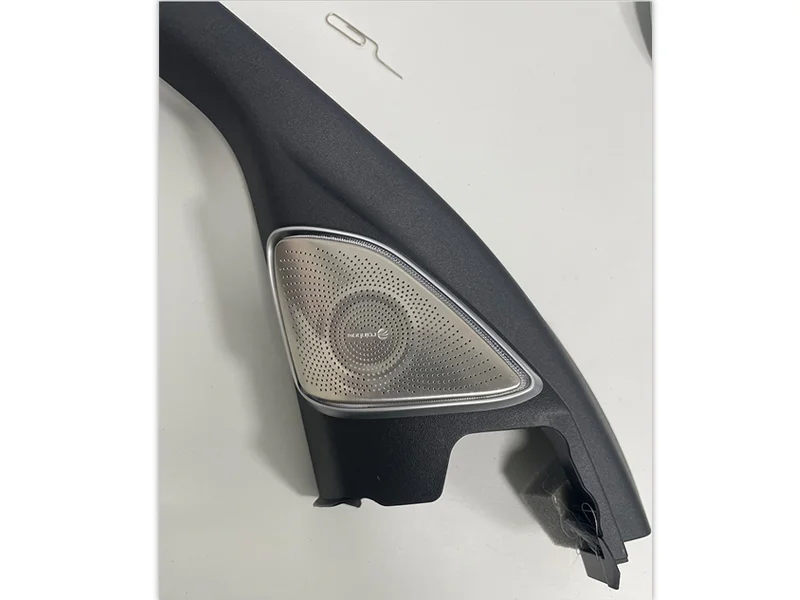

Install rainbow audio’s tweeter grille
Step:08

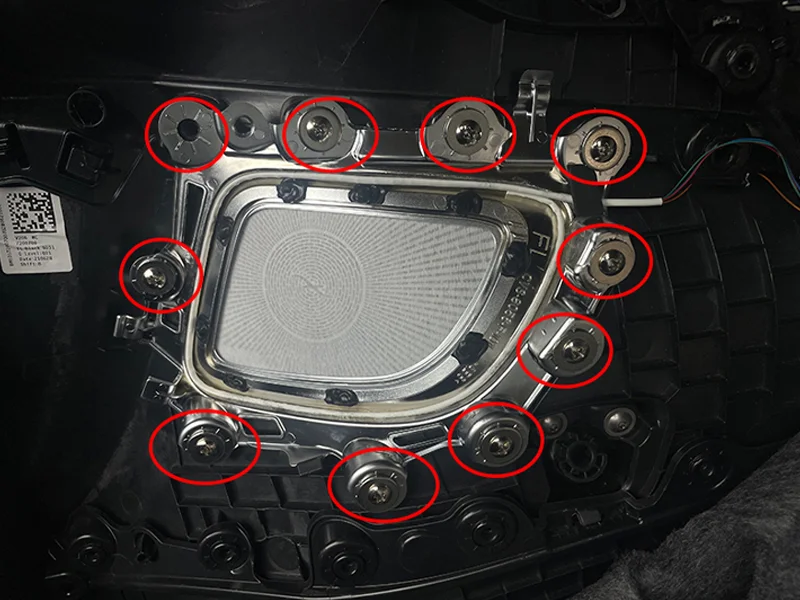

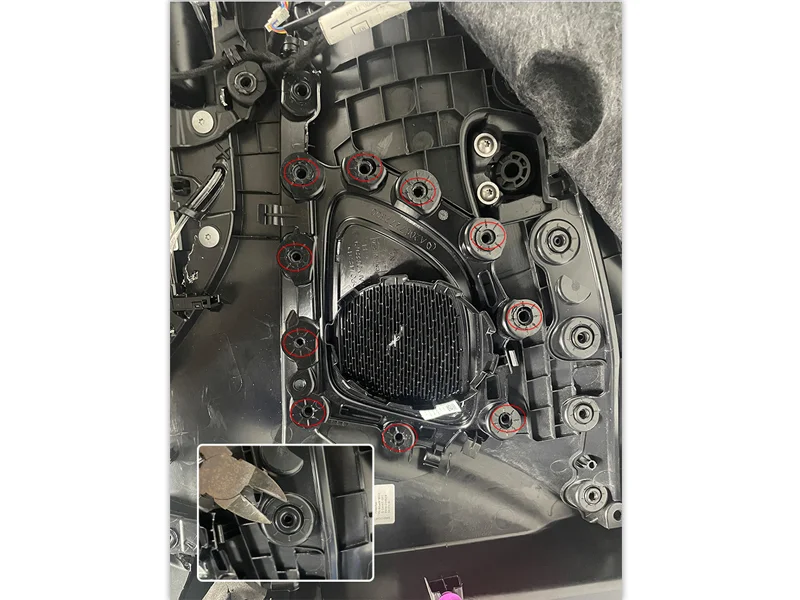

Remove plastic solder joints
Step:09
Install rainbow audio’s grille and secure it with screws
Step:10

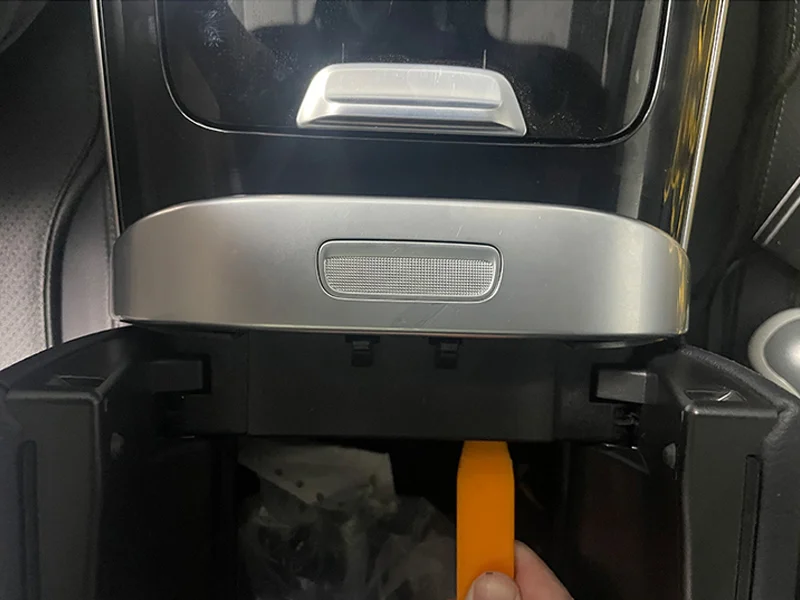

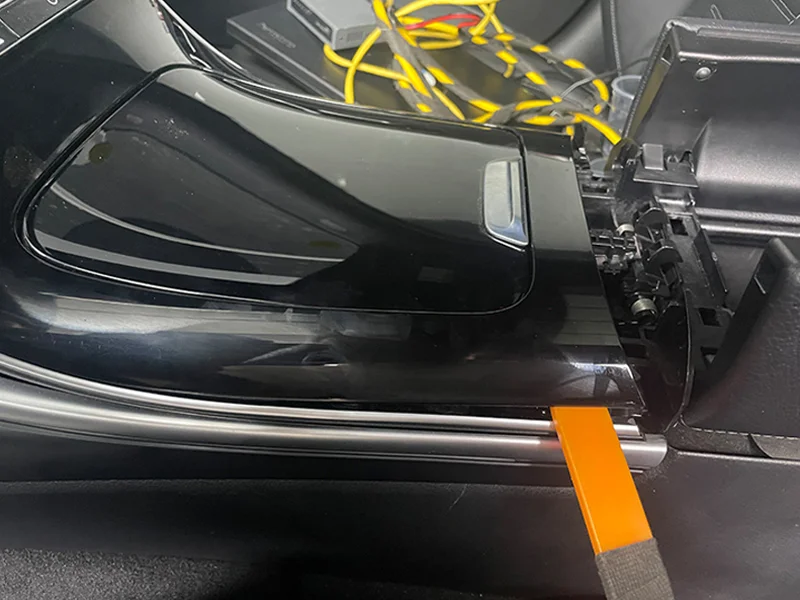

Open the center console and pry open the trim panel
Step:11
Remove the trim panel
Step:12

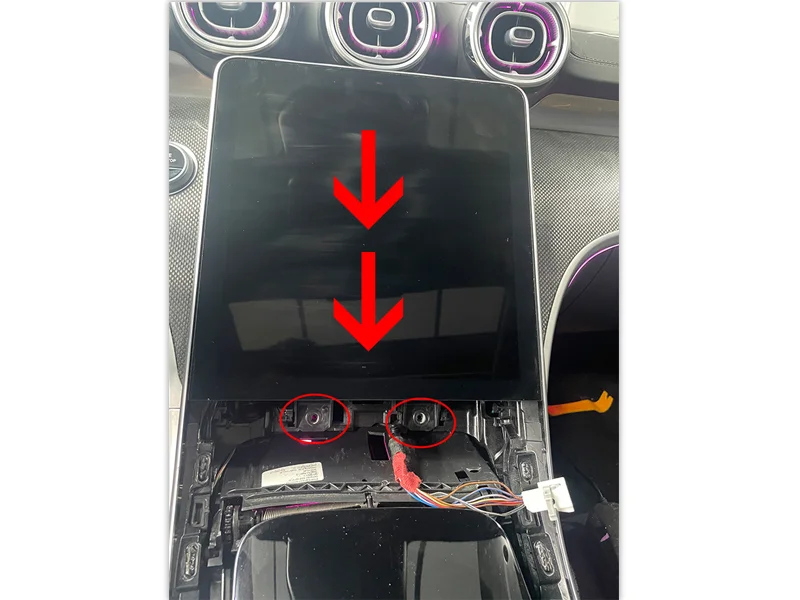

Remove the screws and slide the screen down
Step:13

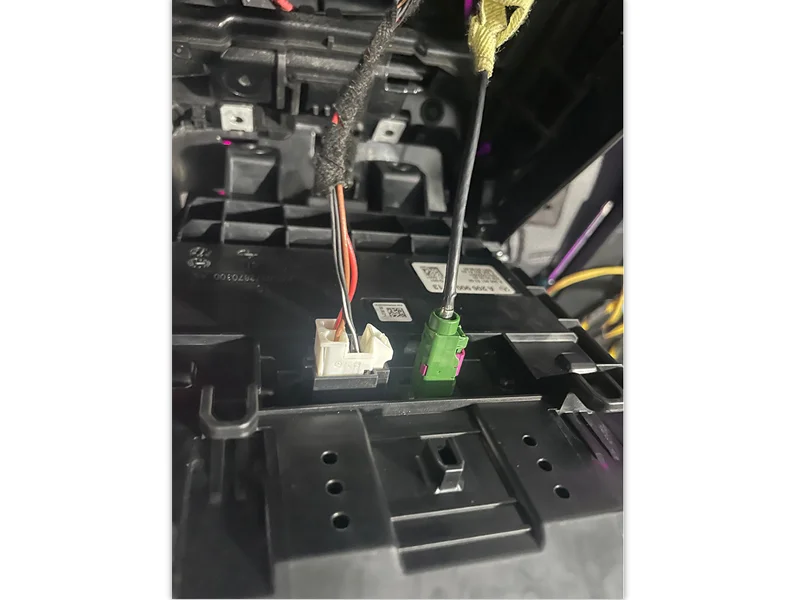

Pull out the plug and remove the screen
Step:14

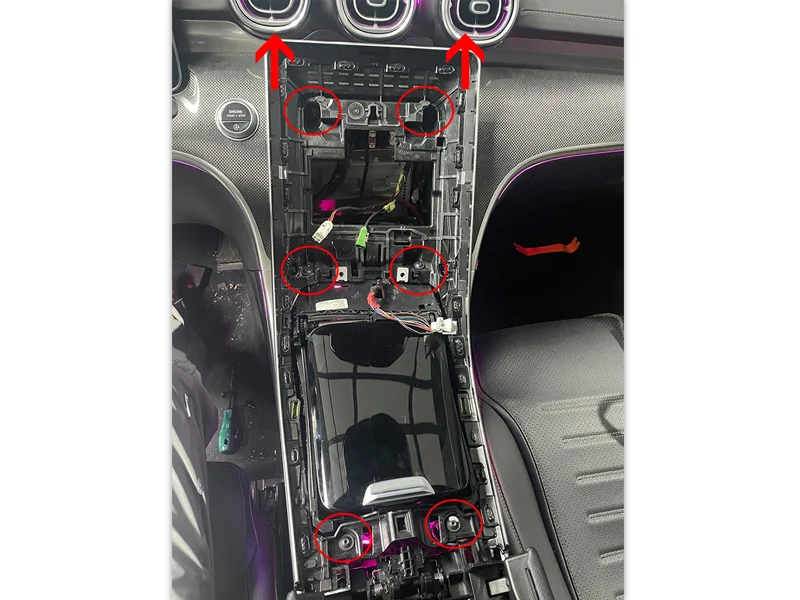

Remove the 8 screws
Step:15

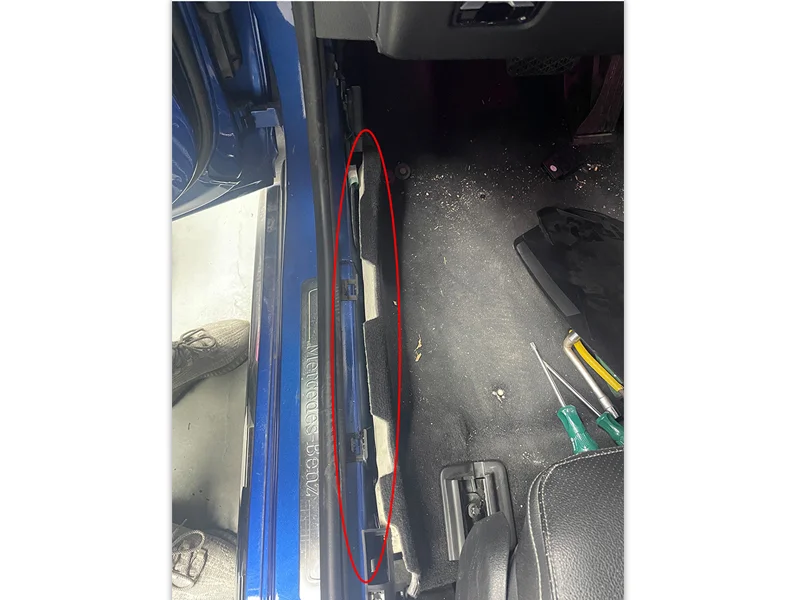

Remove the trim panel
Step:16

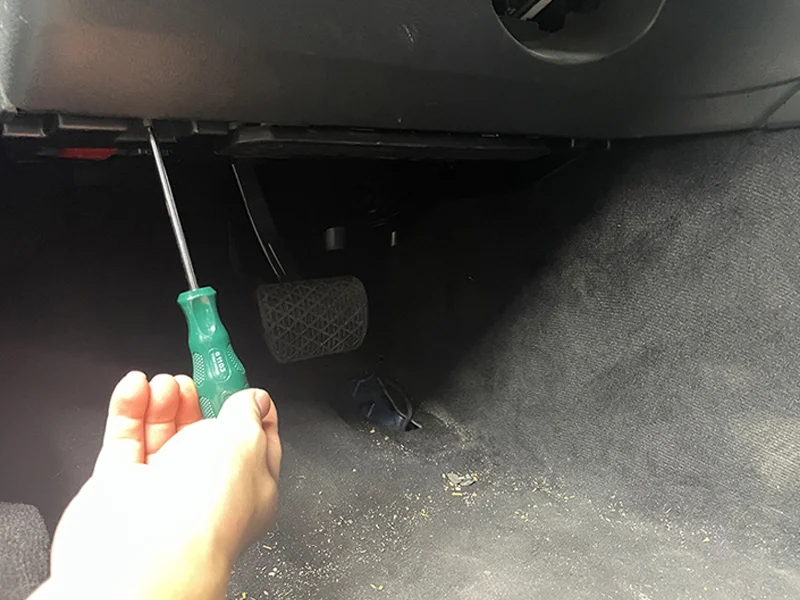

Remove the bottom panel
Step:17

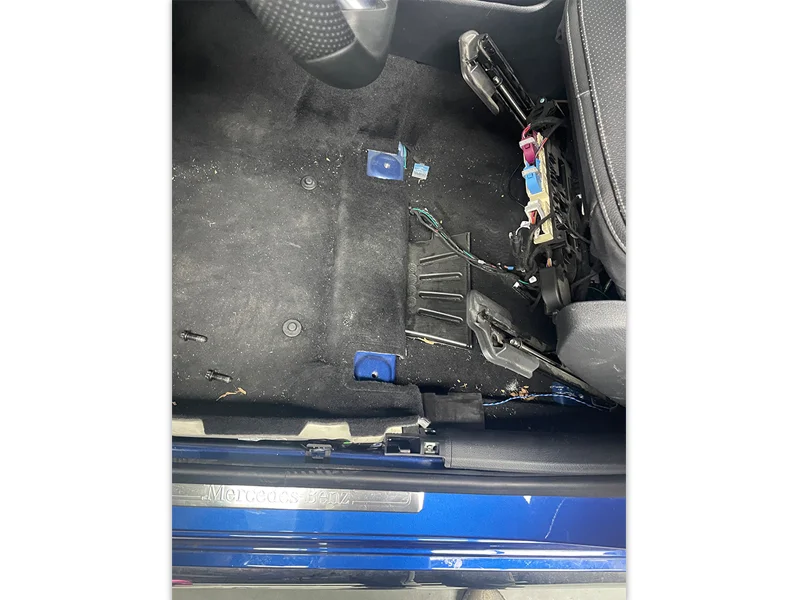

Remove the seat
Step:18

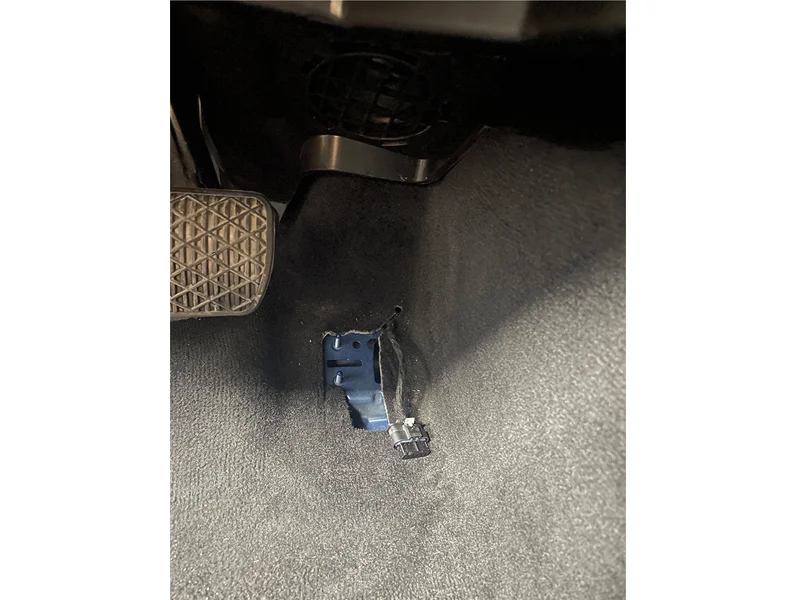

Remove the gas pedal
Step:19

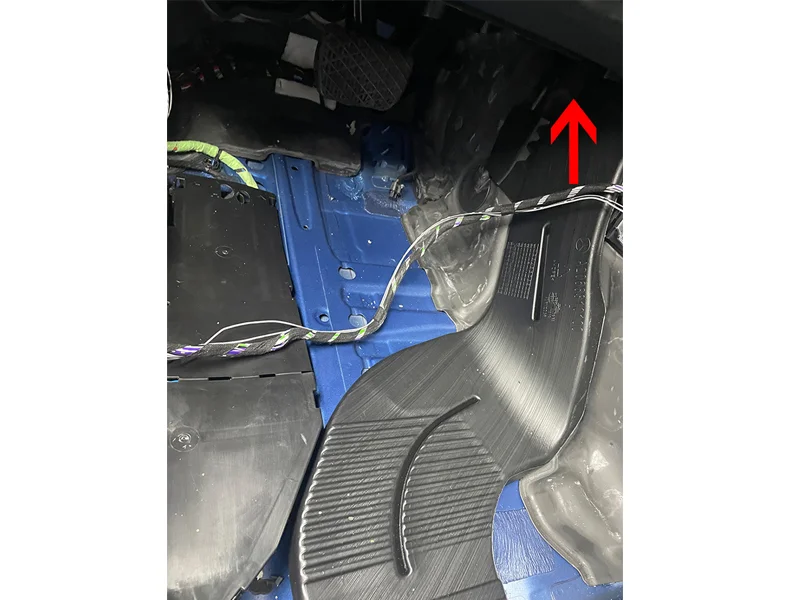

Remove the carpet and run the speaker adapter harness to the back of the head unit
Step:20

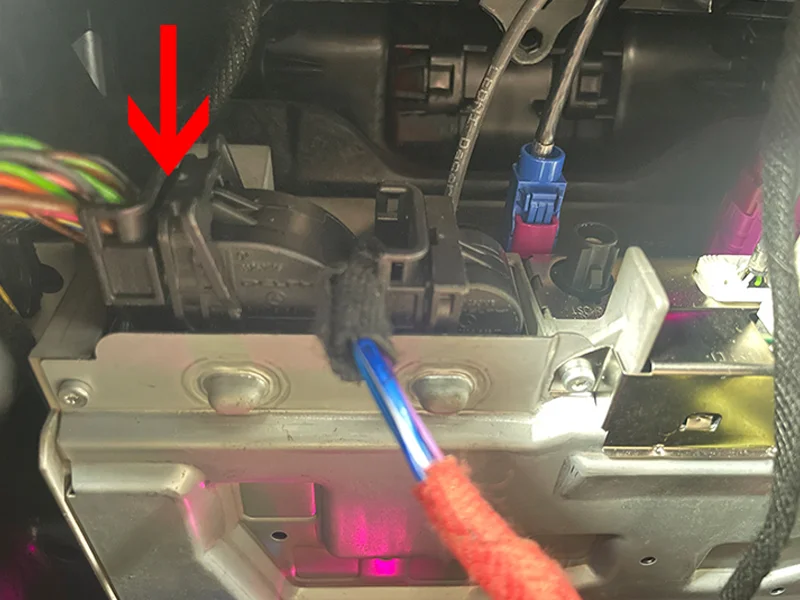

Connect to the original head unit connector
Step:21

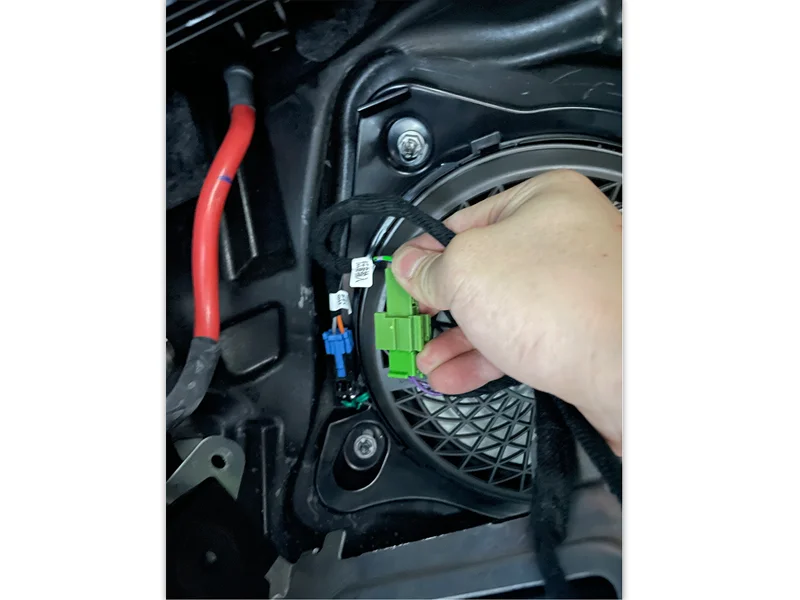

Connect to the original woofer connector
Step:22

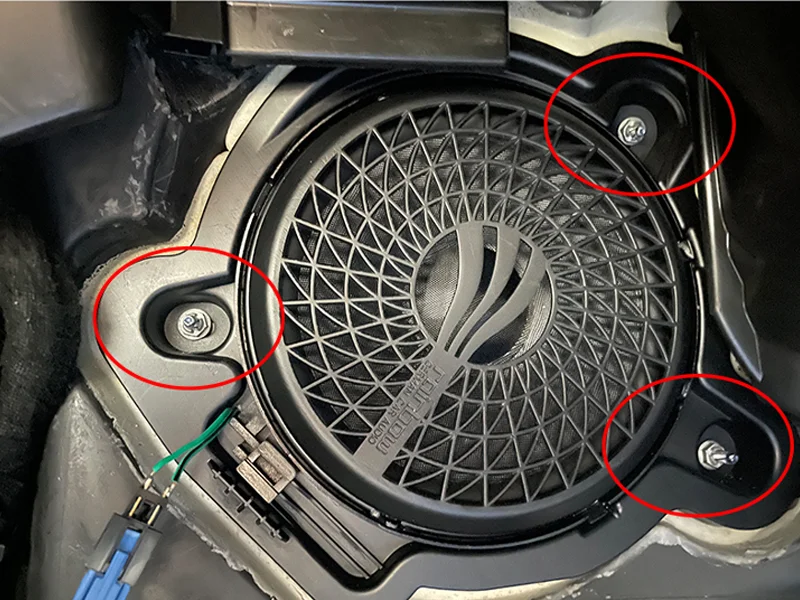

Remove the original rubber housing, install rainbow audio’s woofer, one each under the driver seat and the front passenger seat
Step:23

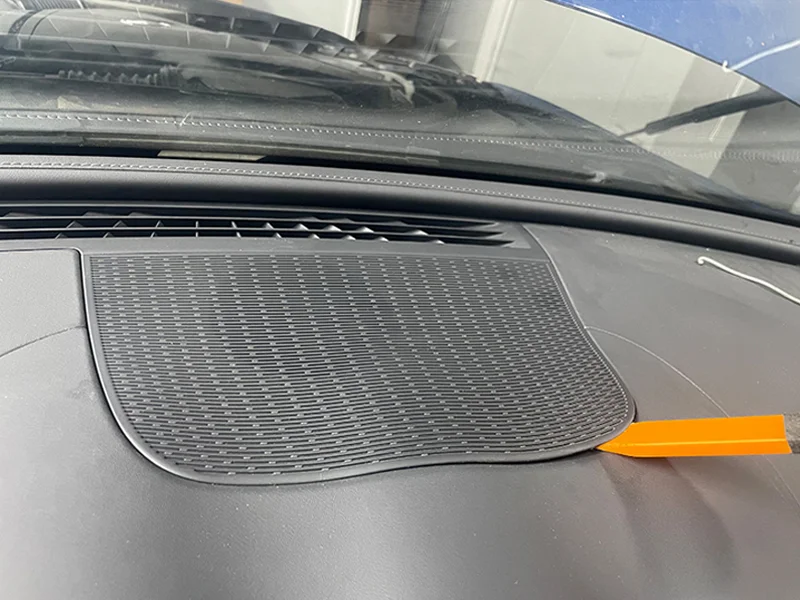

Pry open the center speaker grille
Step:24

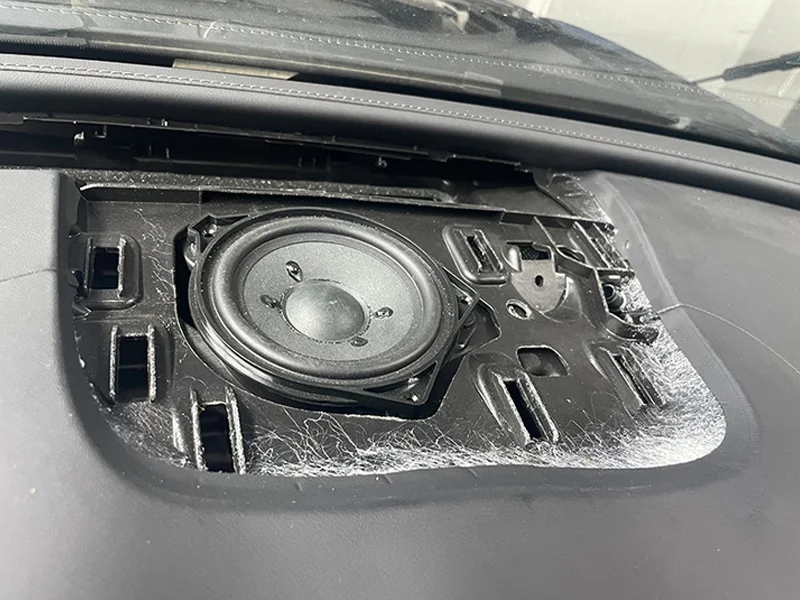

Route the wire and install the center speaker
Step:25

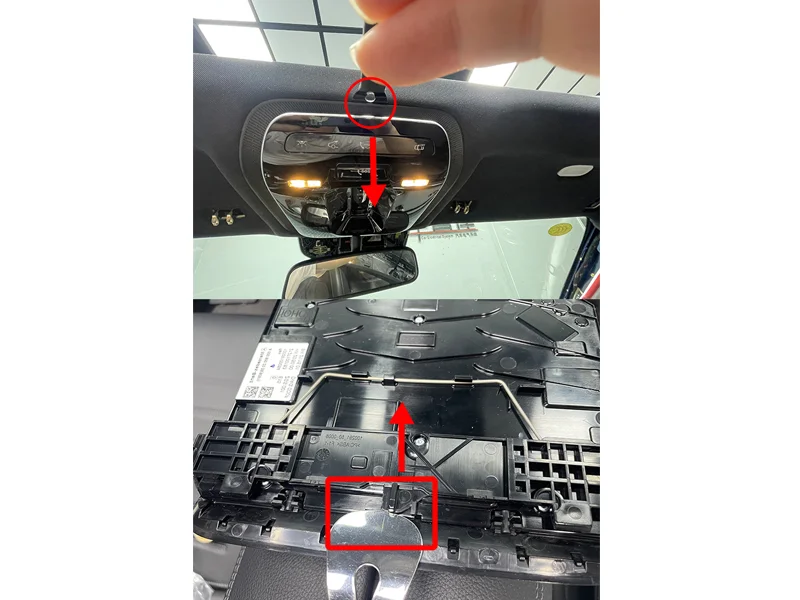

Pry inward at the red circle marked position and remove the reading light assembly
Step:26

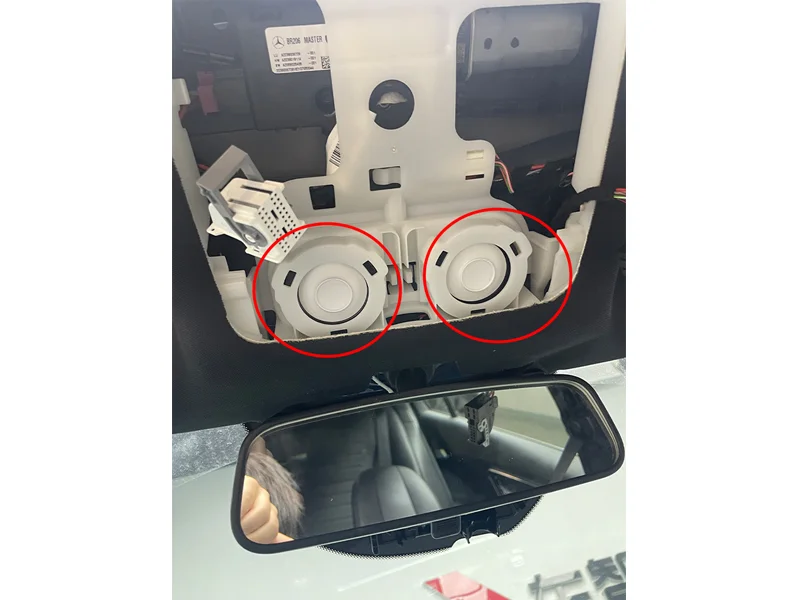

Install the overhead surround speakers
Step:27

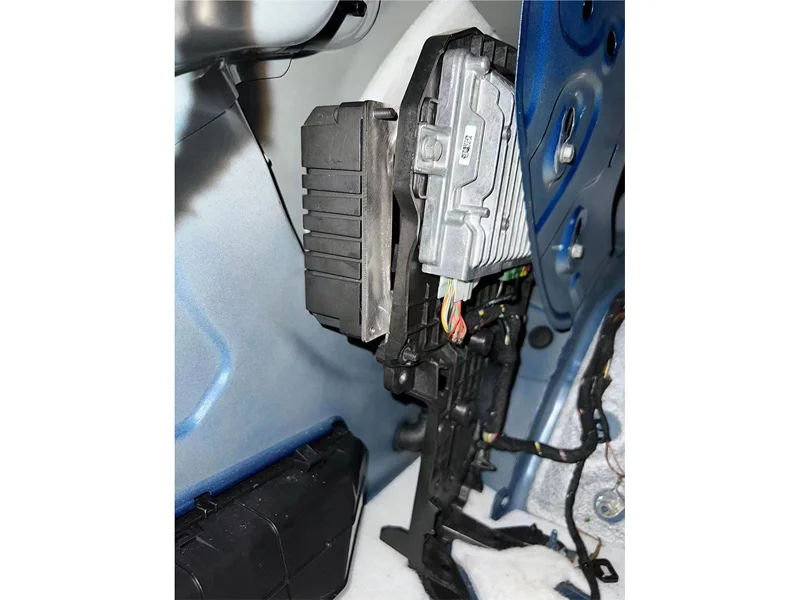

DSP amplifier after-installation display
Step:28

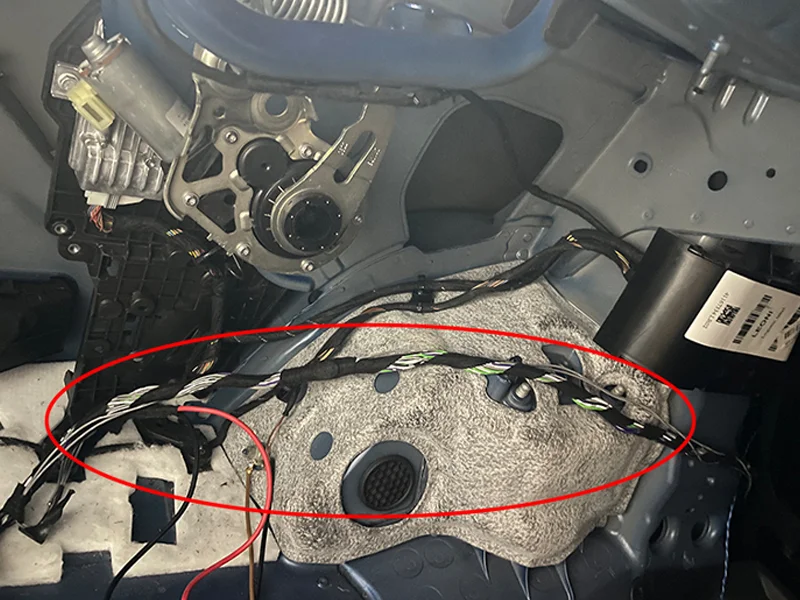

Run the speaker wire to the left side of the trunk
Step:29

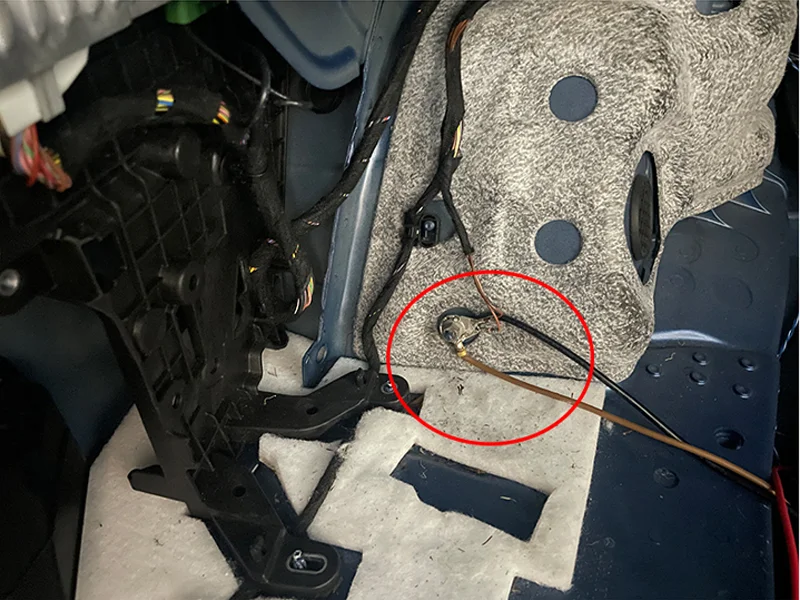

Grounding point for audio equipment

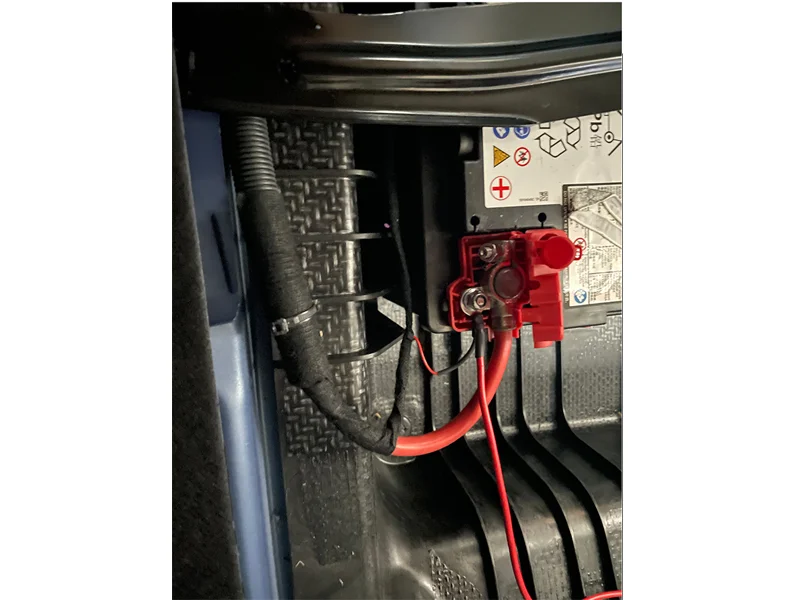

Step:30
Step:31

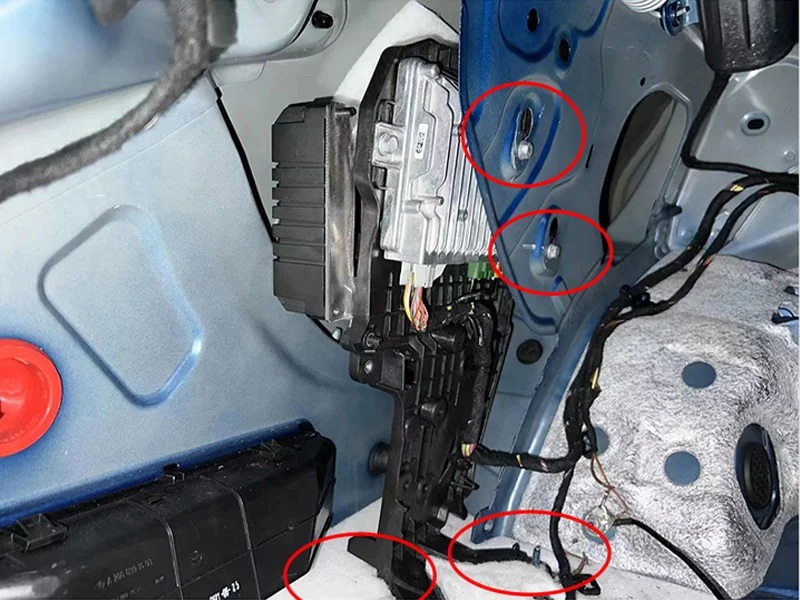

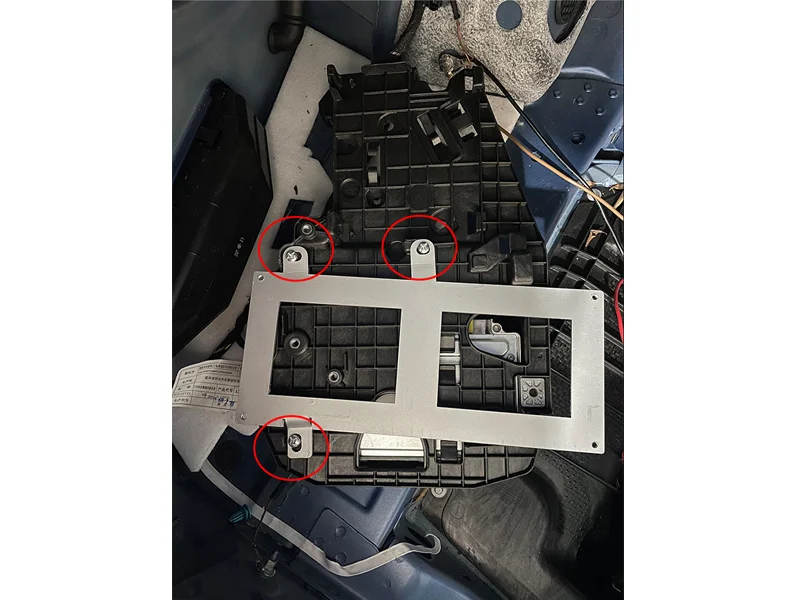

Unscrew the screws and remove the original amplifier bracket
Step:32
Grounding point for audio equipment

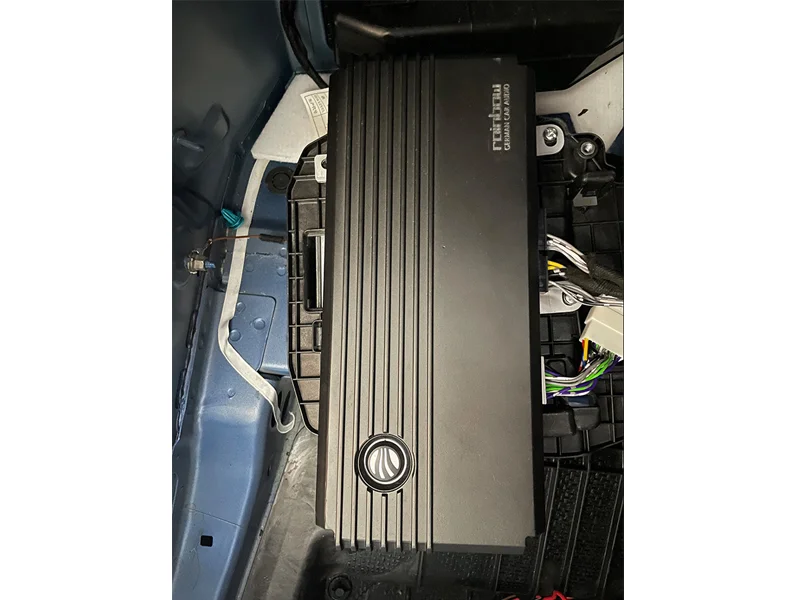

Step:33
